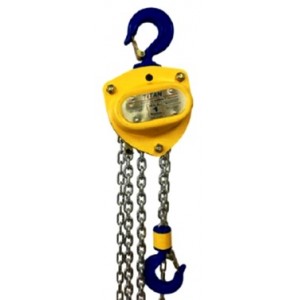

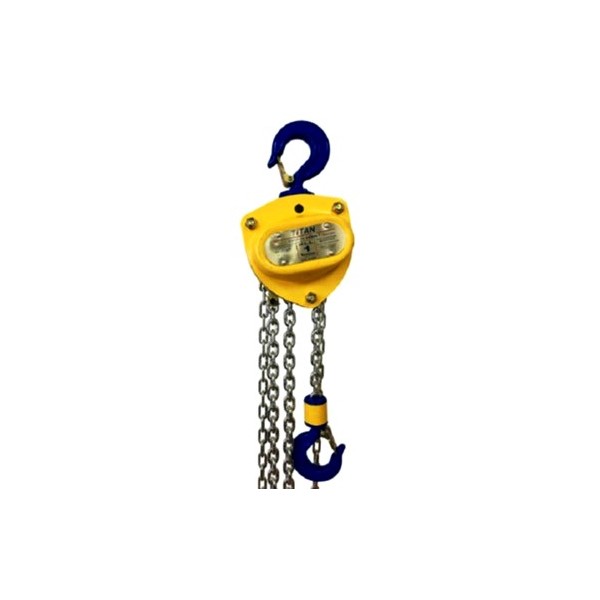

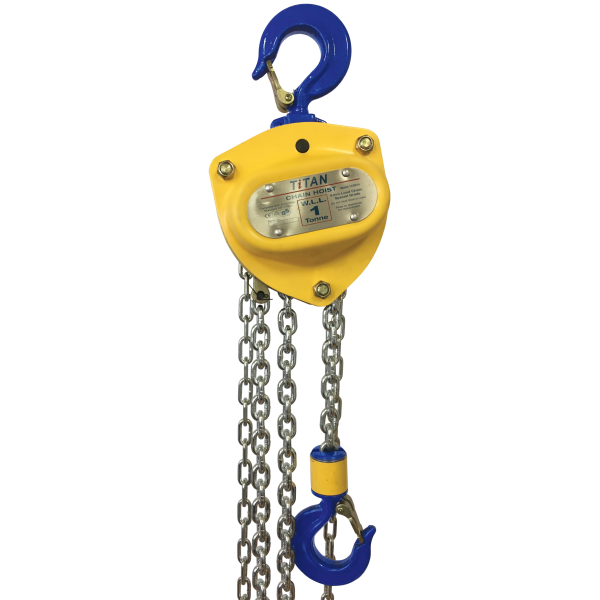

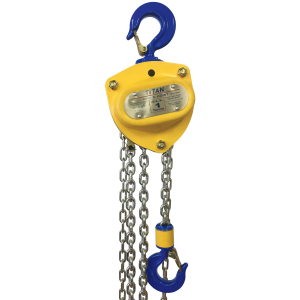

Chain Block - Titan "HZA" Series



New Industrial TiTAN "HZA" Series



  • High strength steel frame and gear case
  • Double pawl & guide rollers
  • Wide throat top & Thrust Bearing bottom hk
  • Alloy steel G80 Load Chain
  • Cast safety latches.
  • Proof Tested to 1.5 x WLL
  • Complies with AS/NZ1418
  • Plated Hand & Load Chain
  • For Lifting Vertical (Not Pulling Sideways)


Do you need to add "ID Tag" to your cart for this item.

276 in stock

$290.00 Nett

Extra Info

1 Fall Units:  0.25T,  0.50T,  1.0T, 1.5T & 2.0T                 2 Fall Units:  3.0T & 5.0T

3 Fall Units:  7.5T           4 Fall Units:  10.0T           6 Fall Units:  15T

8 Fall Units:  20.0T         12 Fall Units:  30.0T


Twin Head Block (2 Person Operation) Units:  15.0T,  20.0T  & 30.0T


FEATURES
• Lightweight robust construction
• Super strength alloy loadchain
• Fully machined liftwheel
• Minimum headroom
• Minimum effort to raise maximum load
• Cast steel safety latches
• Lower hook complete with thrust race
• Fully enclosed gear train
• Weather protected automatic Weston brake with unique Twin Pawls
• Zinc Plated Alloy Grade 80 Load Chain
• Durable baked enamel paint protection
• Stainless Steel labels
• Spare parts always available

Packaging... These items are to large for Courier Bags


Hoist Packed Weight - Standard 3m Lift

0.50T 11kg,  1.0T 13kg,  1.5T 14kg,  2.0T 23kg,  3.0T 33kg,  5.0T 48kg,  10.0T 70kg
