Clamp - Titan Uni Vertical

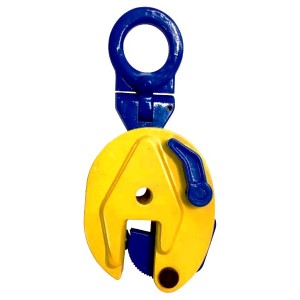

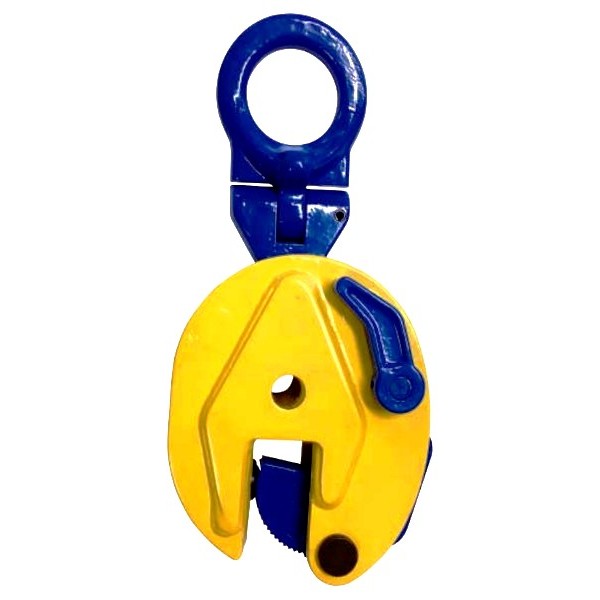

TiTAN Vertical Plate Lifting Clamp


FEATURES

• Strong all-steel construction
• Safety lock
• Wide plate acceptance
• Hardened pressure plate and tongue
• Durable baked enamel finish
• Universial Piviting Lifting Eye


Certification to AS4991


For Dimensions Click "DOWNLOAD"


Do you need to add a "ID Tag" to your cart for this item.

156 in stock

$160.00 Nett

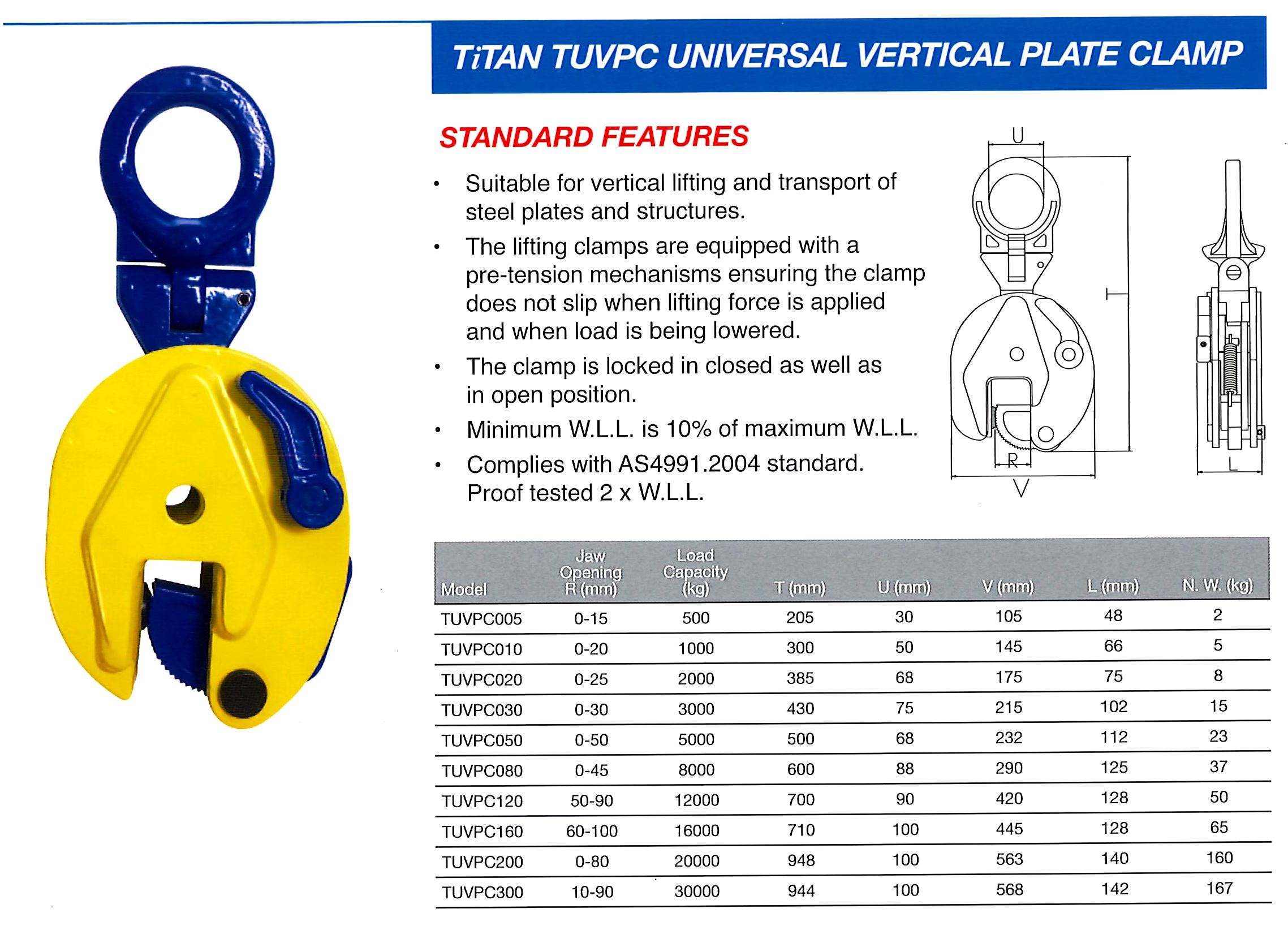

0.5T Clamp Gap Opening 0 to 15mm - 30mm Eye Dia

1.0T Clamp Gap Opening 0 to 20mm - 48mm Eye Dia

2.0T Clamp Gap Opening 0 to 25mm - 68mm Eye Dia

3.0T Clamp Gap Opening 0 to 30mm - 74mm Eye Dia

5.0T Clamp Gap Opening 0 to 50mm - 80mm Eye Dia


Safety WARNING

* Never Exceed the Capacity of the Clamp

* Never Lift UNDER 20% of the Rated Capacity of the Clamp

Titan Plate Clamps are manufactured to handle steel plates not exceeding 300 Brinell Hardness or 32 Rockwell.


Do not Lift plates with coastings or mill scale that prevent the gripping of the surfaces of the clamp from making positive contact with the base metal.

Packaging...

These items are to large for Courier Bags...
