Key Features
* Reduced Effort - High Performance Gear System
* Secures Load - Active Instant Hold Load System
* Increased Safety - "OVERLOAD PROTECTION"
* Double Casing - Dust & Rainwater Resistant
* Zinc Plated G100 Load Chain
* International Standards AS1418.2
> Compact design, small body, low headroom
> High precision CNC Gears
> Impact resistant gear cover

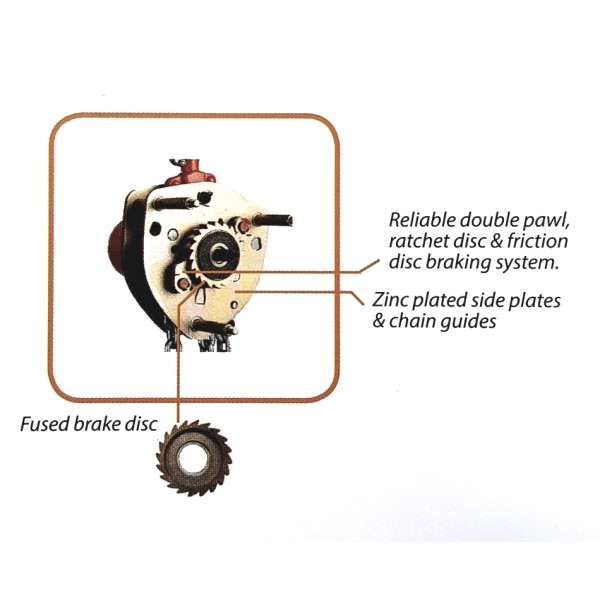

> Double pawl brake system
> Dust cover on brake system
> Zinc plated fixings, side plates and guides

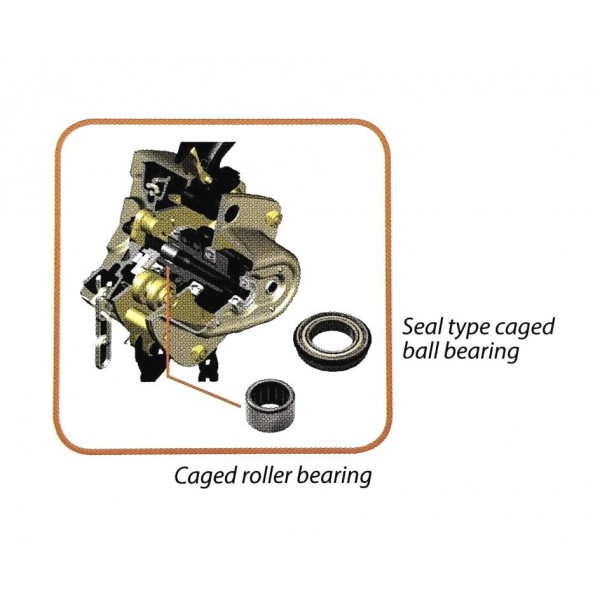

> High precision gears with 4 caged bearings
> Engineering optimized hand chain grooves and cover allows smooth operation pulling on various angles
> High precision CNC load chain guides
> Factory Pre-set Overload Protection system
> Fused weather protected ratchet-brake disc
> Zinc plated G100 load chain
> Heavy duty cast hook safety latches
> Dacromet coated parts
> Stainless steel Identification Plate
What Does Overload Protection Actually Mean:
Generally any brand hoist with "Overload Protection" means it has a built in safety feature to ensure the user does not overload the hoist causing it to fail and/or injury to the user..
The manufacturers set the overload engagement to around 30% to 50% ABOVE the Maximum Working Load Limit (WLL) so on a 9.0T WLL Lever Hoist the overload system would engage around 12.0T (Approx 3.0T above its WLL)
Hoist Weight Packed: Standard 3M Lift
0.50T 12kg, 1.0T 14kg, 2.0T 21kg, 3.0T 25kg, 5.0T 45kg, 10.0T 88kg, 15.0T 155kg, 20.0T 210kg, 30.0T 290kg
