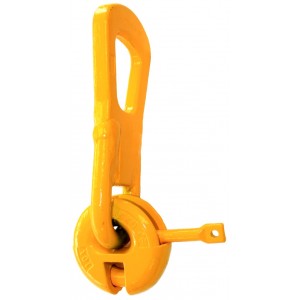

Concrete Lifting Ring Clutch - SLR G80



Super Cast Alloy Locking Ring

Lifting Ring is Forged Alloy Steel

100% Magnaflux Crack Tested

Yellow Powder Coated Protection

Safety Factor of 5:1



(Reid Formida Type)

351 in stock

$115.00 Nett



Annual Proof Load 1.2 x WLL (AS3850)





Markings on Clutch..



Cast Locking Ring:  SLR, CE, A-Z, Rating



Forged Ring:  SLR, CE, WLL, Factory Batch No.


Box Quantities:  2.5T / 10,   5.0T / 4,


2.5T Ring Lifting Clutch Minimum Fit:  16mm Connector,  10mm Sling or Safety Hook

5.0T Ring Lifting Clutch Minimum Fit:  22mm Connector,  13mm Sling or Safety Hook


Ring Load Pin Dia :  2.5T / 13mm,  5.0T / 17mm


Please Note;

The 2.5T Ring Clutch will not fit the 1.3T Reid Eye Anchors

The 5.0T Ring Clutches will fit 7.0T Anchors but "MUST NOT" be used over 5.0T WLL
