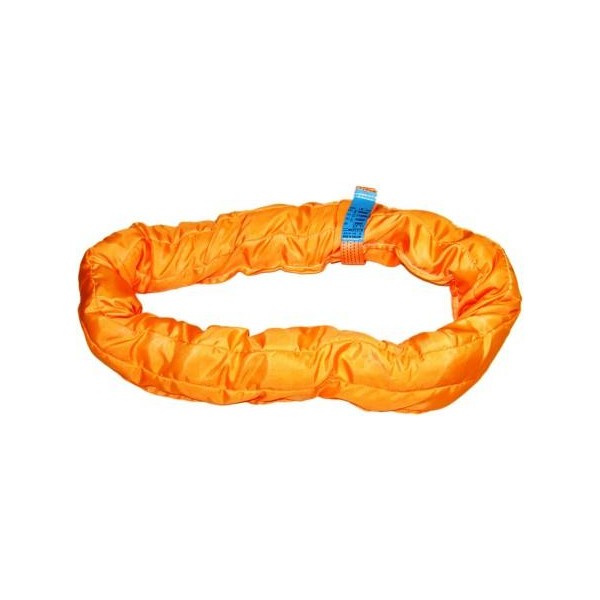

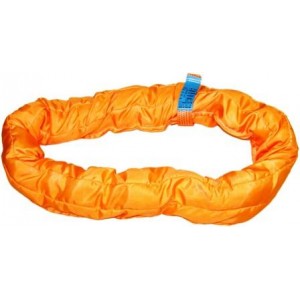

Roundsling - 20T Titan Orange

TiTAN BIG LIFT ENDLESS SLINGS


* Certification to AS4497

* Unique Identification Number.

* All slings are made from 100% Polyester.

* WLL is clearly marked on each sling.

* International Colour Coded.

* Safety Factor 7:1
* Flat Thickness 22mm


Refer "DOWNLOAD" for Shackle Choices

31 in stock

$245.00 Nett

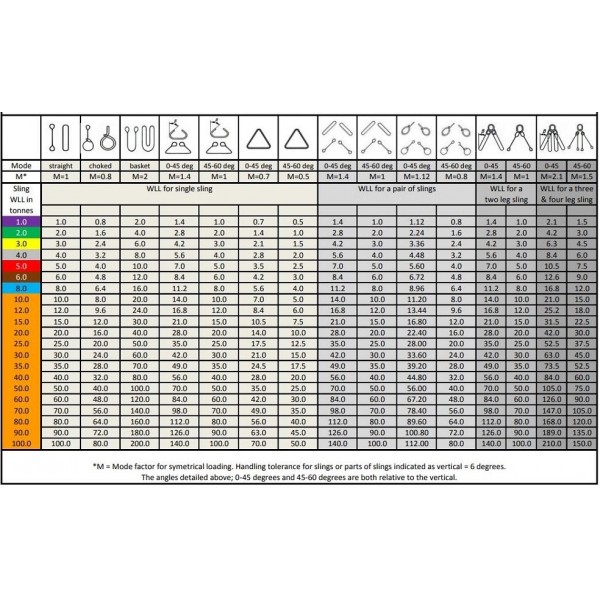

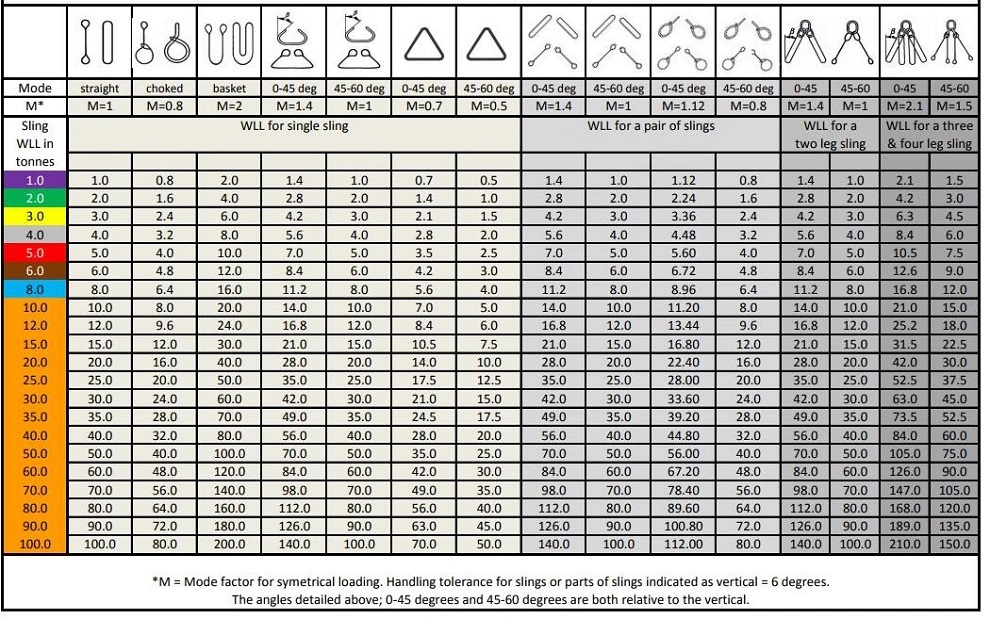

NOTE: The International Ratings Chart attached works on "external" angels.

New Zealand uses "internal" angels so multi leg ratings 0-45 is 90 Degrees (Factor 2.1).


A 60 degree 2 leg sling example:  If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.

Based upon this example the 3&4 Leg Load Factor would be 2.6


The Following Must Be Adhered To

* Do not expose to temperatures above 90 degrees C

* Do not load in excess of the rated capacity

* Do not drag on the floor or over abrasive surfaces

* Do not twist, shorten, lengthen, or tie in knots

* Do not pull from under loads that are resting on the sling

* Do not repair any damaged sling

* Do not store in chemically active areas, under ultraviolet light or near heat

* Always protect from sharp edges and corners or abrasive surfaces

* Always inspect before each use

* Always ensure the correct sling is being used for the application

TOLERANCE:
In accordance with AS4497.1, Roundslings shall have an accuracy of +/- 3% of the nominal length expressed in metres.

Sling Weights
20T Roundsling 1.5m (Approx 13kg)
20T Roundsling 3m (Approx 21kg)
20T Roundsling 6m (Approx 62kg)
20T Roundsling 8m (Approx 80kg)
20T Roundsling 10m (Approx 90kg)
20T Roundsling 12m (Approx 110kg
